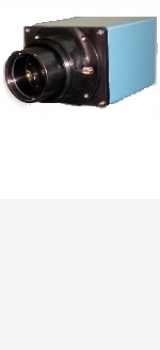

AST A4-EX

Product Features

  • Simple to use - No calibration required
  • High accuracy - (1%) in real site conditions
  • Capable of measuring targets with variable emissivity.
  • Measures through smoke, dust, water vapor etc.
  • Temperature range 170°C to 550°C, 200°C to 650°C, 250° to 870°C, 300 to 1150°C
  • Rugged design
  • Full range of accessories
  • Wide range of built-in functions
  • A4-SW Application software for PC
  • A4-SW A Mobile Application software for Android via Bluetooth

Performance

  • Emissivity : 0.1 -1.0
  • Response Time : 0.1 - 1.0 Sec
  • Default Value : 0.5 Sec
  • Accuracy and Repeatability : ±1%

Electrical specifications

  • Power Supply: 24VDC
  • Optional Output: 4-20 mA, 0-20 ma, 0-10V, RS-232, RS-422, USB, TC.
  • Analog Output: 4-20 mA, 0-20 mA, 0-10V, K Type T/C

Optional

  • Bluetooth
  • Digital Display: P110
  • Digital Output: RS-232, RS-422, USB, Bluetooth

Mechanical Specifications

  • Sensor overall dimensions: 215 x 110 x 105.0 mm
  • Sensor weight: ~2.0Kg

Ambient condition

  • Operating temperature range: 0°C +50°C
  • Storage temperature range: -20°C +70°C
  • Humidity: Unlimited for the sensor-head

Optics

  • Spot diameter: 10mm from a distance of 1 m different optics are available
